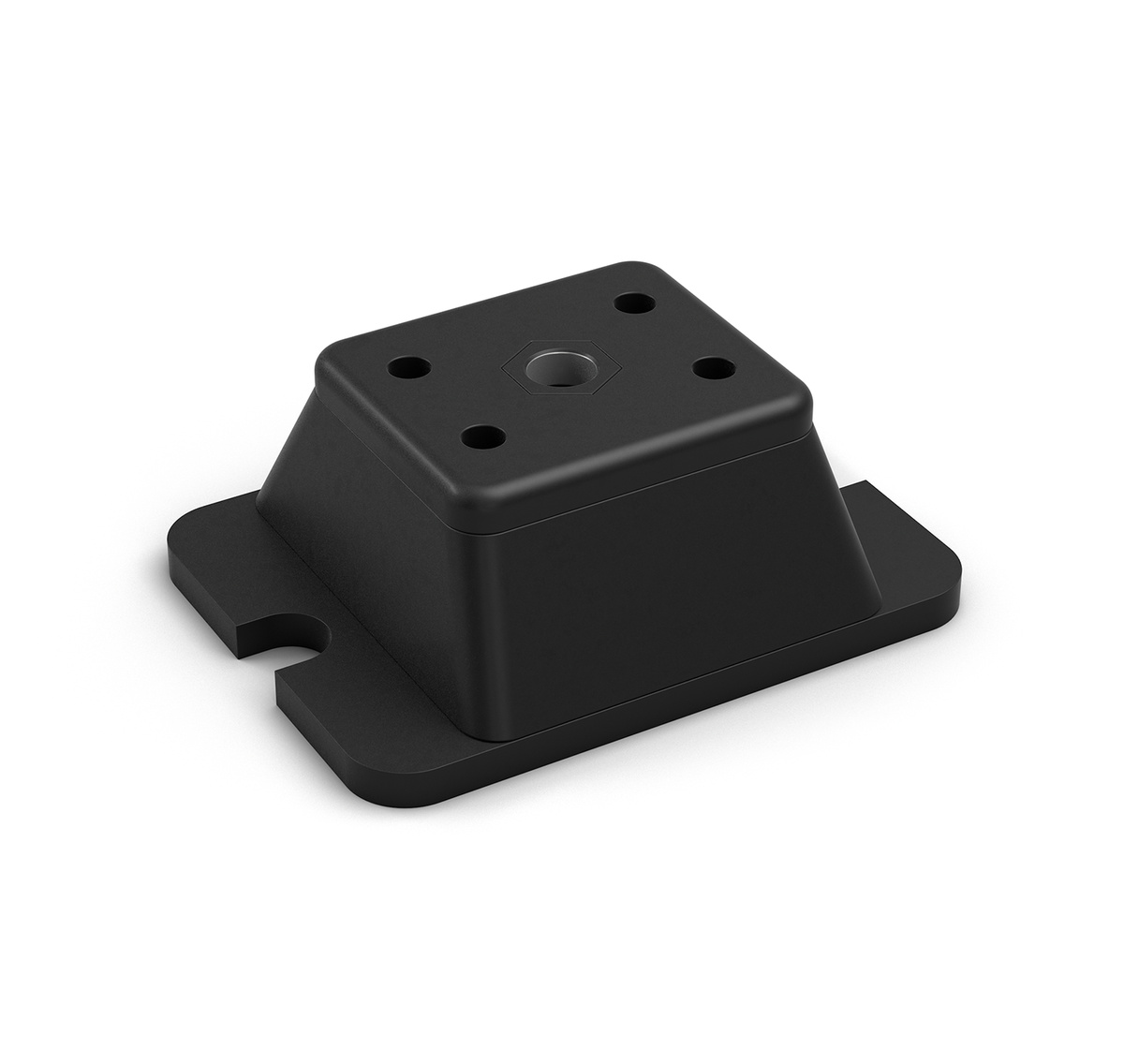

Rubber-Metal Isolators
COM-52564

Effective isolation of machines and plants: The Compression Mounts product family consists of robust heavy duty bearings, which are particularly good at preventing vibrations and structure-borne noise due to unbalanced masses. These prestressed machine elements are maintenance-free and improve efficiency in all low frequency application ranges above about 15 Hz. Using a linkage, the natural frequency of the system can be reduced to between 6 and 10 Hz. Interfering frequencies above 900 rpm (15 Hz) are effectively isolated. At 1,500 rpm (25 Hz) the level of isolation is 90 %.

Made from galvanised metal and neoprene or natural rubber, they can be used at temperatures between -30 °C and +80 °C.

The heavy duty mount is normally used in vertical load applications - above all for industrial machines, small motors, pumps and compressors.
