TYPES	Energy capacity Nm/cycle	Stroke mm
SDP63-50EU-F	9,100	50
SDP63-75EU-F	13,600	75
SDP63-100EU-F	18,200	100
SDP63-150EU-F	27,300	150
SDP63-200EU-F	36,400	200
SDP63-250EU-F	43,200	250
SDP63-300EU-F	49,100	300
SDP63-400EU-F	54,500	400
SDP63-500EU-F	59,100	500
SDP63-600EU-F	60,000	600

Safety Shock Absorbers
SDP63-600EU-F

High return forces with gas pressure accumulator

Crane Installations, Optimized Characteristic
Energy capacity 60,000 Nm/cycle
Stroke 600 mm

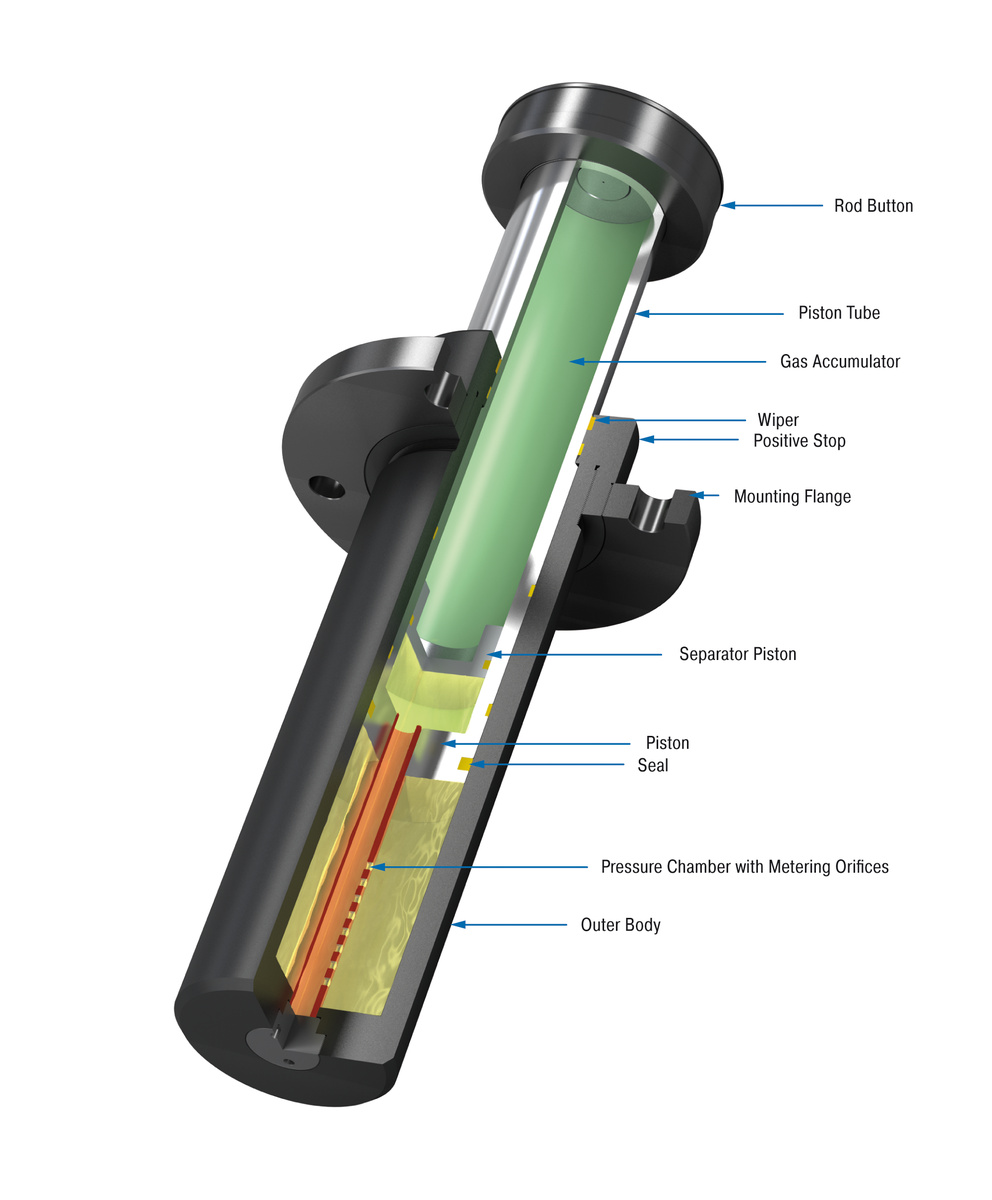

Reliabity: The emergency stop from the large scale SDP63 to SDP160 product family have internal system seals. Even dirt or damages to the piston rod do not lead to a leakage or failure. Compressed gas accumulators allow return forces of up to 100 kN, which can make applications in multiple bridge crane systems safer, for example. The absorber body and the robust, large-sized piston rod bearing are also designed for heavy duty operations

Just like all ACE safety shock absorbers, the characteristic curve or damping characteristics of each individual absorber is individually adjusted to the respective application.

Please note that the last goods issue for Christmas/New Year will be on December 23th. In the new year, outgoing goods will start again on January 2nd

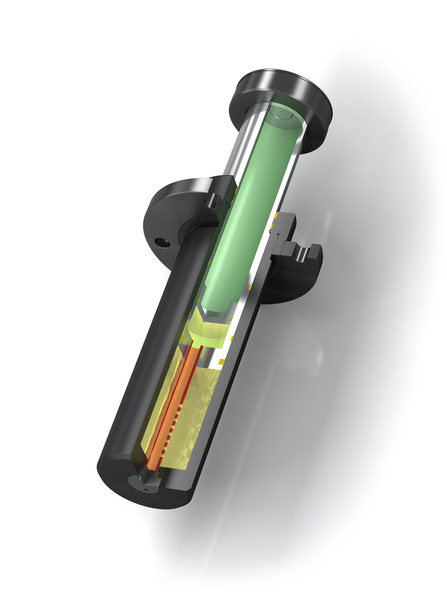

ACE Controls Inc. - Image - SDP63EU-F Front Flange

€--.--

List price excl. VAT.

excl. shipping

on request (Currently out of stock. You will be informed about availability as soon as possible after reviewing your request.)

CAD Drawings

SDP63-600EU-F

Crane Installations, Optimized Characteristic

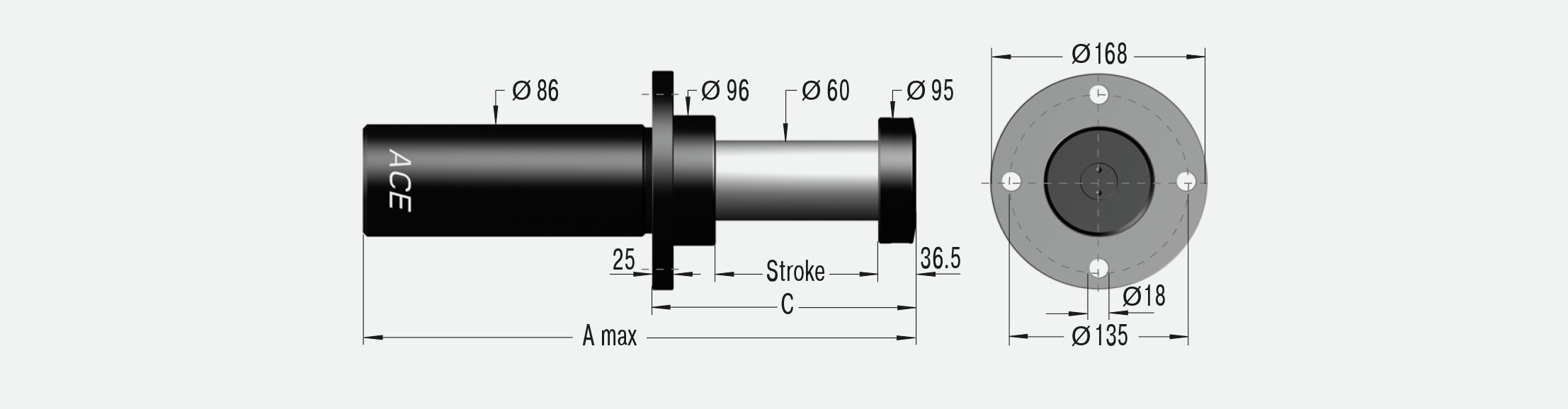

Dimensions

Stroke	600 mm
A max.	1,840 mm
C	695 mm

Technical data

Energy capacity 60,000 Nm/cycle

Reacting Force 110,000 N

Return Force min. 1,500 N

Return Force max. 20,000 N

R
Side Load Angle max. 1.0 °

Impact velocity range 0.5 m/s to 4.6 m/s. Other speeds on request.

Operating temperature range -20 °C to +60 °C. Other temperatures on request.

Mounting in any position

Positive stop Integrated

Material Outer body: painted steel; Rod end button: steel; Piston tube: hard chrome plated steel

Damping medium HLP 46

Filling pressure approx. 5 bar. Rod return by integrated nitogen accumulator.

Note

The shock absorber can be pushed through its stroke. In creep speed conditions the shock absorber provides minimal resistance and there is no braking effect.

On request

Special oils, special flanges, additional corrosion protection etc.

SDP63-600EU-F

Crane Installations, Optimized Characteristic

Application Examples

Safety Shock Absorbers - SDP63 to SDP160

Impact absorption for lock gates

Driving into lock gates should be specifically facilitated when navigating through Dutch river locks. That is why ACE developed special dampers, based on existing SDP safety shock absorbers but with optimized characteristics, a fixed stop and a st...

Application Areas

shelf storage systems
heavy load applications
Outer body: painted steel; Rod end button: steel; Piston tube: hard chrome plated steel

Whether its crane systems or machines in heavy duty applications e.g. in the metal industry or in mining, these powerful safety shock absorbers reliably protect construction designs against expensive failure.
