TYPES	Energy capacity Nm/cycle	Energy capacity emergency use Nm/cycle	Stroke max. mm
TC64-62-S	450	630	62
TC74-76-S	980	1,372	76
TC83-73-S	1,940	2,715	73
TC134-146-S	7,310	10,230	146
TC146-67-S	8,330	11,660	67
TC150-178-S	8,860	12,400	178
TC153-178-S	7,260	10,165	178
TC176-198-S	12,725	17,810	198

Safety Dampers
TC150-178-S

Compact powerhouse

Crane Installations
Energy capacity 8,860 Nm/cycle
Stroke max. 178 mm

For even more protection: The profile dampers from the TC range of the ACE TUBUS-Series can also be used as safety dampers. These maintenance-free, ready-to-install damping elements made of co-polyester elastomer have been specially developed for use in crane systems and fulfil the international industry standards OSHA and CMAA. In the special TC-S design, managed to achieve the spring rate required for crane systems with the unique dual concept.

Whether TC-S or TC, this range of models represents a cost-effective solution with high energy absorption for energy management systems. The very small and light design of Ø 64 mm to Ø 176 mm progressively covers energy absorption within a range of 450 Nm to 17,810 Nm.

Please note that the last goods issue for Christmas/New Year will be on December 23th. In the new year, outgoing goods will start again on January 2nd

€582.44

List price excl. VAT.

excl. shipping

on request (Currently out of stock. You will be informed about availability as soon as possible after reviewing your request.)

CAD Drawings

TC150-178-S

Crane Installations

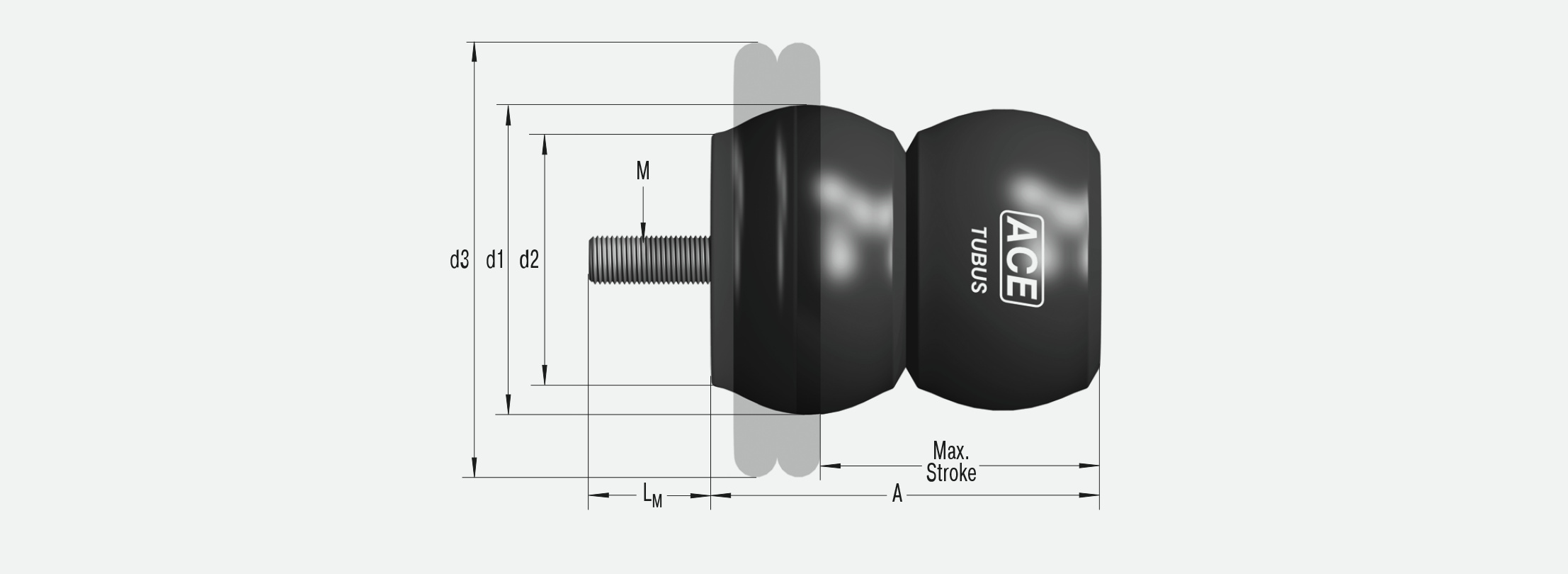

Dimensions

Stroke max.	178 mm
A	241 mm
d1	150 mm
d2	132 mm
d3	224 mm
M	M16 mm
L_M	16 mm

Technical data

Energy capacity 8,860 Nm/cycle

Energy capacity emergency use 12,400 Nm/cycle

Energy absorption 31 % to 64 %

Dynamic force range 80,000 N to 978,000 N

Operating temperature range -40 °C to +90 °C

Construction size 64 mm to 176 mm

Material hardness rating Shore 55D Shore

Material Profile body: co-polyester elastomer

Mounting in any position

Environment Resistant to microbes, seawater or chemical attack. Excellent UV and ozone resistance. Material does not absorb water or swell.

Impact velocity range Max. 5 m/s

Torque max. M12: 50 Nm
M16: 40 Nm (DIN912)
M16: 120 Nm (shouldered screw)

Note

Suitable for emergency stop applications and for continous use. For applications with preloading and increased temperatures please consult ACE.

On request

Special strokes, -characteristics, -spring rates, -sizes and -materials.

TC150-178-S

Crane Installations

Application Examples

Safety Dampers - TUBUS TC and TC-S

Emergency stop systems for motion platforms of vehicle cock...

Whether for aircraft cockpits, train drivers’ cabs or passenger vehicles: the motion principle of platforms for simulators is always the same. Type TA profile dampers and type TC and TC-S safety dampers from ACE are used to protect the x, y and z-...

Safety Dampers - TUBUS TC and TC-S

Pendulum limiting systems for tele wheel loaders

With their function of limiting swinging movement, they secure machines when cornering and loading and provide a high degree of comfort and safety as well as securing the loaders. A further advantage is that the shovel can be loaded up to its full...

Safety Dampers - TUBUS TC and TC-S

TUBUS damping for more sustainable sorting

A sorting plant for copper from Wieland-Werke AG is used to separate the metal-dross mixture. During the separation process the metal runners with a mass of up to 4,000 kg land in a steel collecting structure. With a drop height of 2.3 m and a cyc...

Safety Dampers - TUBUS TC and TC-S

TUBUS made to measure for transport by helicopter

Helicopters are lightly built and must be handled with appropriate care, especially if these flying objects are to be brought to their place of operation as air cargo. Then the interior of the transport aircraft is usually only slightly larger tha...

Application Areas

crane systems
loading and lifting equipment
hydraulic devices
electro-mechanical drives

The profile dampers from the TC range protect cranes, loading and lifting equipment, hydraulic units and much more.
