TYPES	Holding force N	Operating pressure bar
PL20-1-4B	540	4
PL20-1-6B	900	6
PL25-1-4B	780	4
PL25-1-6B	1,200	6
PL30-1-4B	1,100	4
PL30-1-6B	1,800	6
PL35-1-4B	1,800	4
PL35-1-6B	2,800	6
PL45-1-4B	2,400	4
PL45-1-6B	4,000	6
PL45-2-4B	2,400	4
PL45-2-6B	4,000	6
PL55-1-4B	3,600	4
PL55-1-6B	6,000	6
PL55-2-4B	3,600	4
PL55-2-6B	6,000	6
PL65-1-4B	6,000	4
PL65-1-6B	10,000	6
PL65-2-4B	6,000	4
PL65-2-6B	10,000	6

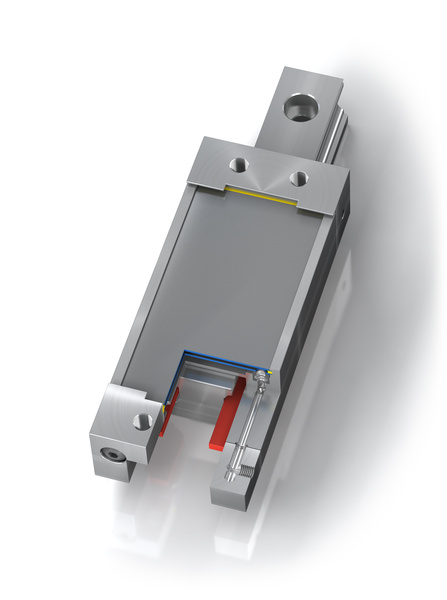

Clamping Elements
PL65-1-4B

High clamping power for all rail profiles

Process Clamping for Rail Systems
Holding force 6,000 N

Always on the safe side: LOCKED PL process clamping elements clamp directly onto the clear area of guide rails on linear modules with forces of up to 10,000 N. They are individually adjusted to the linear guide being used and are available for all rail sizes from 20 mm to 65 mm and profiles from all renowned manufacturers.

This product family achieves 100 % clamping force even on greased rails, due to the steel pads that are used. It offers optimum static clamping with up to 1 million cycles. These process clamping elements also impress with their low system costs in comparison with hydraulic and electric solutions.

Please note that the last goods issue for Christmas/New Year will be on December 23th. In the new year, outgoing goods will start again on January 2nd

€1,046.02

List price excl. VAT.

excl. shipping

on request (Currently out of stock. You will be informed about availability as soon as possible after reviewing your request.)

CAD Drawings

Product-Downloads

Technical Details

PL65-1-4B

Process Clamping for Rail Systems

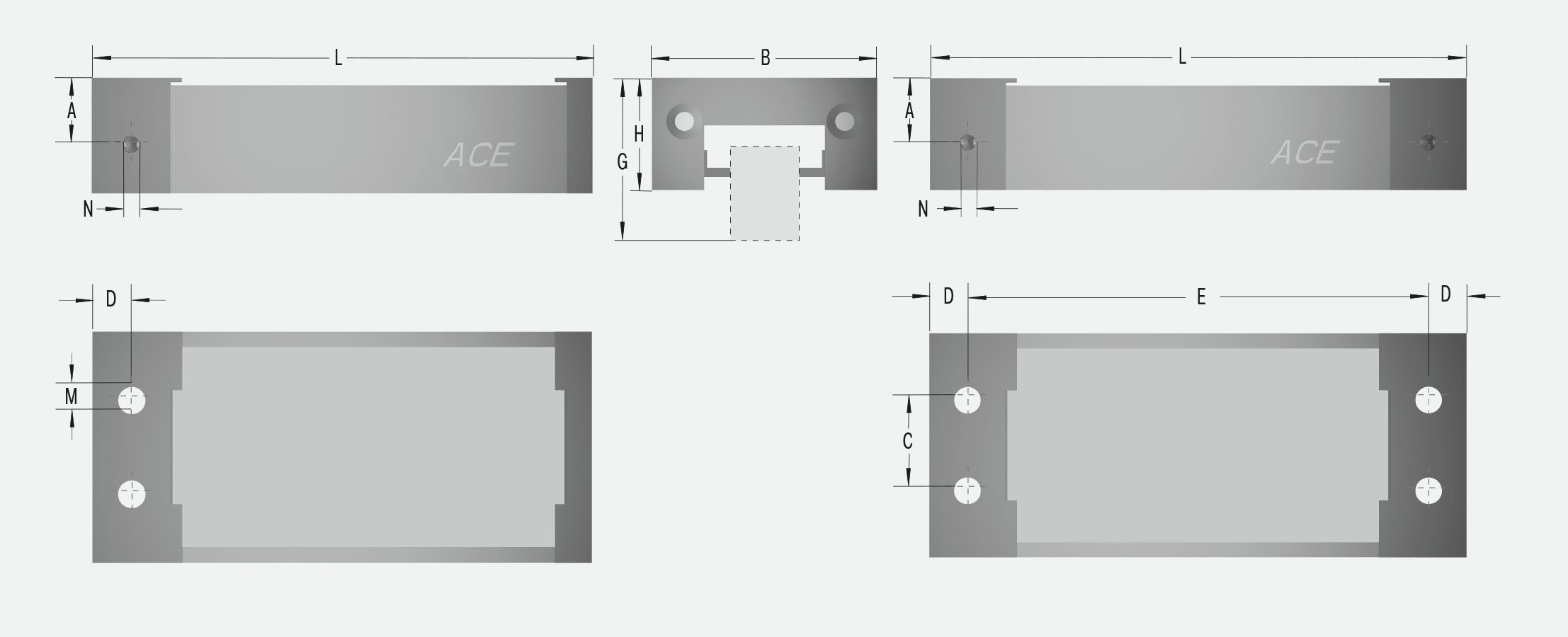

Dimensions

B	120 mm
C	44 mm
D	15 mm
E	- mm
G	100 mm
G	90 mm
H	74 mm
H	64 mm
L	259.5 mm
M	M12 mm
N	G1/8 mm

Technical data

Holding force 6,000 N

Operating pressure 4 bar

Rail sizes 20 mm to 65 mm

Clamping cycles 1,000,000

Mounting in any position

Material Outer body: tool steel

Pneumatic medium dried, filtered air

Operating temperature range 15 °C to 45 °C

Note

If requested installation drawings of the respective types are provided.

On request

Special designs on request.
