TYPES	Damping torque Nm	Damping direction
FDT-47	2.0 +/- 0.3	bidirectional
FDT-57	4.7 +/- 0.5	bidirectional
FDT-63	6.7 +/- 0.7	bidirectional
FDT-70	8.7 +/- 0.8	bidirectional

Rotary Dampers
FDT-57

The flat disc brake for two-sided damping

Continuous Rotation
Damping torque 4.7 +/- 0.5 Nm

The damping direction of the flat constructive ACE rotary damper FDT with robust steel body is two-sided rotation. It can brake directly in the pivot point of the square receptacle. ACE rotary dampers are maintenance-free and ready-to-install.

Please note that the last goods issue for Christmas/New Year will be on December 23th. In the new year, outgoing goods will start again on January 2nd

€32.37

List price excl. VAT.

excl. shipping

in stock (Delivery time: 1 - 3 days)

CAD Drawings

FDT-57

Continuous Rotation

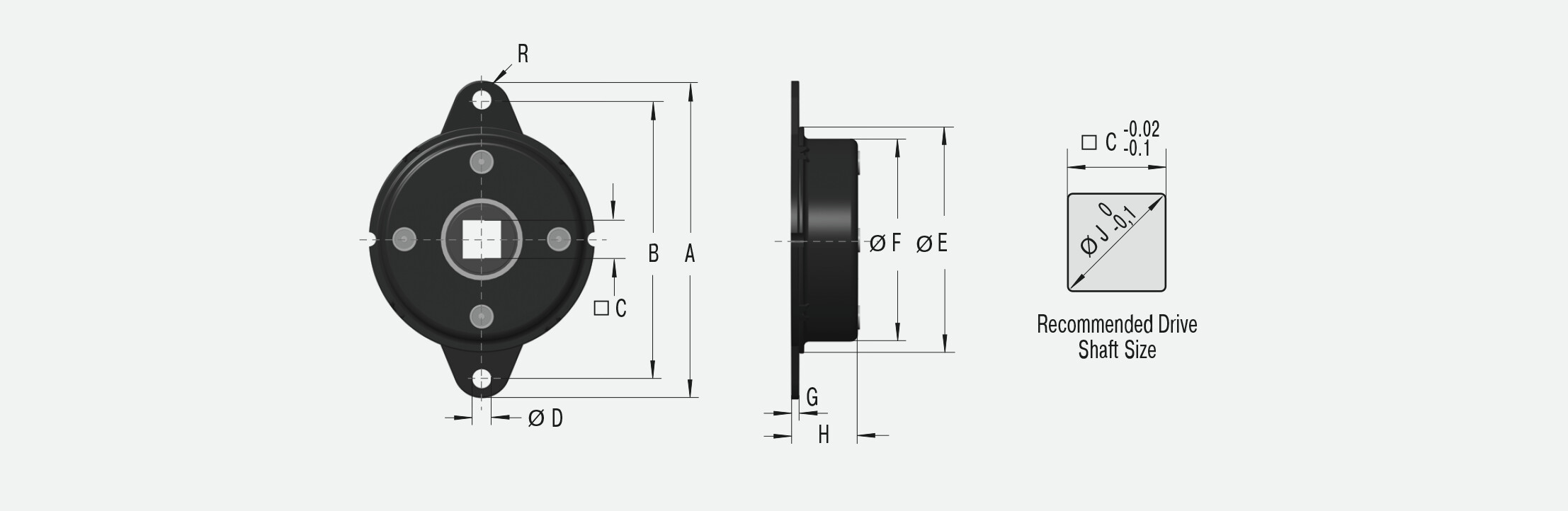

Dimensions
