TYPES	Energy capacity Nm/cycle	Energy capacity Nm/h	Effective weight min. kg	Effective weight max. kg
MA50EUM-B	5.5	13,550	4.50	20

Hydraulic Feed Controls
MA50EUM-B

Stepless adjustment

Adjustable
Energy capacity 5.5 Nm/cycle
Stroke 7.2 mm

Many application options: The hydraulic feed controls in models FA, MA and MVC are similar to that of the VC model. However, these hydraulic controls have been designed for applications that require less precision.

There are also plenty of accessories for the FA, MA and MVC models. All products are ready-to-install, maintenance-free, stable in temperature and avoids stick-slip effect. Speeds from 12 mm/min. can be driven at a low thrust force using the adjustment screw on the base of the hydraulic control.

The adjustable miniature shock absorbers from ACE can be used to meet precisly the customer's application and are therefore found everywhere in mechanical engineering and many other applications.

€94.07

List price excl. VAT.

excl. shipping

in stock (Delivery time: 1 - 3 days)

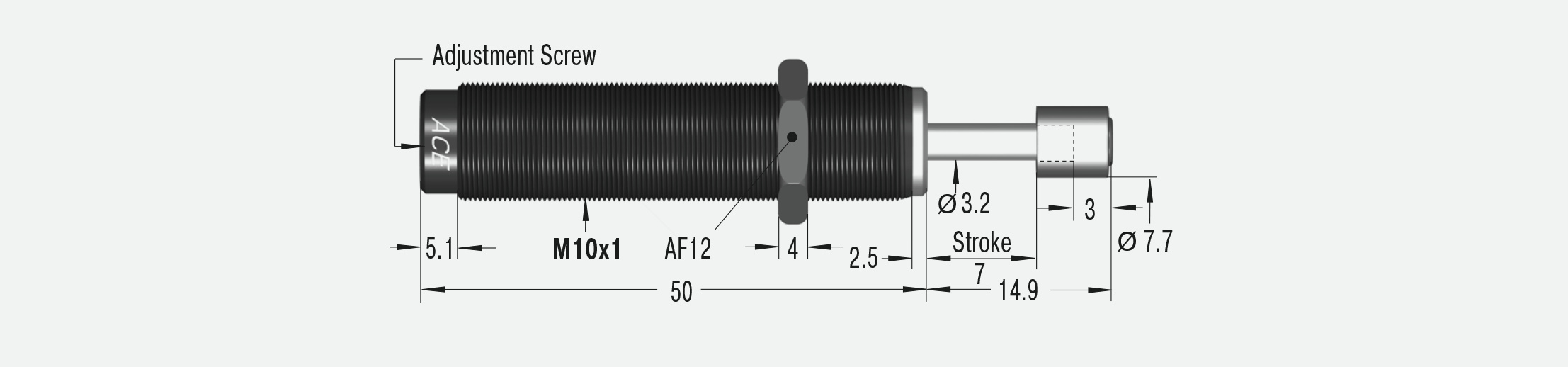

CAD Drawings

MA50EUM-B

Adjustable

Dimensions

Stroke

7.2 mm

Technical data

Energy capacity 5.5 Nm/cycle

Energy capacity 13,550 Nm/h

Effective weight min. 4.50 kg

Effective weight max. 20 kg

Return Force min. 3.0 N

Return Force max. 6.0 N

Return Time 0.3 s

Side Load Angle max. 2.0 °

Impact velocity range At speeds of 0.3 m/s the maximum allowed energy is approx. 2 Nm. Where higher energies occur use a shock absorber for the initial impact. Avoid high impact velocities.

Operating temperature range 0 °C to 66 °C

Mounting in any position

Positive stop Integrated

Adjustment Hard impact at the start of stroke, adjust the ring towards 9 or PLUS. Hard impact at the end of stroke, adjust the ring towards 0 or MINUS.

Material Outer body: nitride hardened steel; Piston rod: steel with black oxide finish or nitride hardened

Damping medium oil, temperature stable

Note

Damper is preset at delivery in a neutral position between hard and soft.

Safety information

External materials in the surrounding area can attack the seal components and lead to a shorter service life. Please contact ACE for appropriate solution suggestions.

On request

Nickel-plated, weartec finish (seawater resistant) or other special options available on request.
